Description

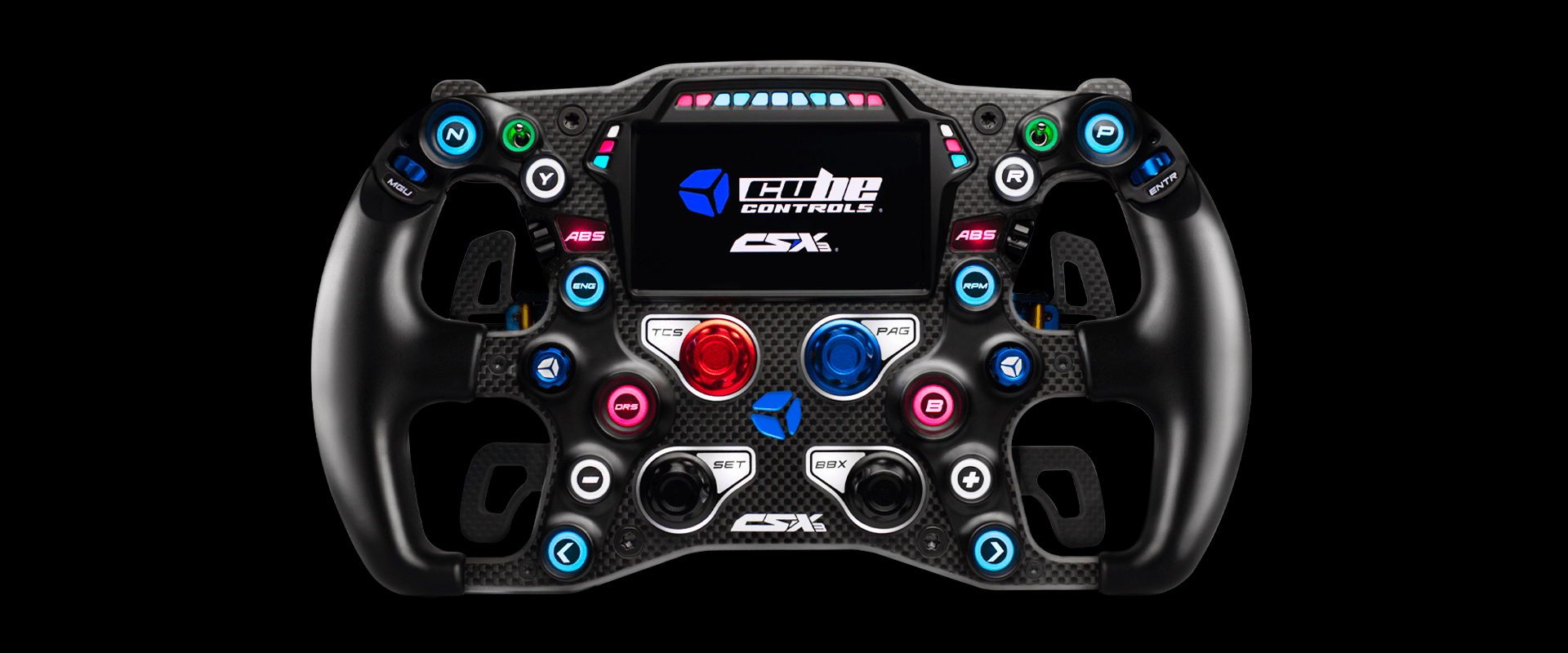

CUBE CONTROLS CSX3 Wheel ADD-ON

Renovated yet familiar

User Experience is a serious business! Every time we design our products we put ourselves in your shoes trying to create the best steering wheels and accessories.

We want to ensure a flawless racing session and to do so we have further redefined the design of one of our most appreciated products while keeping all the good of the recipe: for example, the set of lateral thumbs rotary encoders are now encased in the main body of the wheel (solid as always thanks to a die-cast aluminum back and a strong 100% carbon fiber front plate) providing a firmer grip and better comfort.

By popular demand, the backlight of the buttons has been updated with customizable RGB LEDs, now each button is individually configurable with infinite color combinations to make your sim experience even more unique.

Always under control

CSX3 features a USB and Bluetooth Dual-Mode, combining the possibilities of our classic collection with the freedom of the wireless one. In other words, you can benefit from the clutch system, now redesigned, with ball bearing and improved tactile feedback, while racing with a wire-free setup. No compromises. The Bluetooth Mode also expands the wheel’s compatibility as it now pairs directly with your PC with a close-to-zero input lag. Last but not least, the Q-Conn, with its magnetic coupling, provides superior reliability solving a major issue: for example, if your CSX3 starts spinning wildly because accidents happen while racing, now you don’t have to fear any damage to the wheel. The Q-Conn avoids the stress on the connector and if you lose the connection, you are just a click away from jumping again into the race!

Twin Sticks

The new CSX3 was born as a result of all the feedback, requests, and issue reports collected during these years. We wanted to improve the experience while racing with our top-seller CSX2 wheel and provide you with new options at the same time.
The double joystick was implemented to achieve this.

In addition to browsing the menus, now things like chat settings or box setups will have a complimentary dedicated control, a comfortable shortcut that can make the difference between a good and a great game session. Their precision has been enhanced with sharper sound feedback every time you use its multi-directional functions. No click, no input! There’s a lot more to say about the new CSX3 but we want to let you discover on your own. While having this wheel in your hands please take the time to appreciate all the details and new features, and enjoy the possibilities it offers like we enjoyed creating this new product for you.

Video

Formula CSX-3
4″ 800×480 LCD with touch screen	√
Native Simhub support	√
RGB LEDs	17
All buttons, dials and LED bars compatible with Simhub via a dedicated plugin	√
Optional set of extra CORE paddles	√
Momentary buttons	12
On/off toggle switches with status led	2
Grip-to-Grip wheel length	28,2 cm
Grip max diameter	45 mm
Proprietary custom-made tactile button assembly	√
Improved button guards with better ergonomics and feeling	√
Straight back charging connector	√
Backlit buttons	√
Clutches	√
Front rotary encoders	4
Thumb rotary encoders	2
Thumb rotary encoders integrated into the grips	2
Launch control clutch system	√
Multi-directional joystick with integrated encoder	2
On/off pushbutton on the backside of the wheel	√
In-software clutch and shifters configuration	√
Pure carbon fiber front plate	√
Wheel hub compatible with standard formula-style quick-release hubs (3 bolts, 1-inch and 70mm PCD)	√
Weight	1143 gr
VR friendly	√
Q-conn magnetic connection cable	√
Customizable RGB LEDs buttons and dials	√
Completely redesigned zero-play short-throw custom-designed magnetic switchless shifter paddles with adjustable stop ends, ball bearing and improved tactile feedback	√
Die-cast aluminum main body	√

Compatible Wheelbases

You will need a Fanatec Podium hub.

This wheel is compatible with a Thrustmaster hub and is only compatible with a PC.

Downloads

Additional information

Weight	3 kg
Dimensions	34 × 32 × 12 cm
Brand:	Cube Controls
Model:	CSX3 Wheel Add-on
SKU:	CSX3
EAN:	6097743564535
Connection	USB Cable, Wireless
Momentary buttons:	12
On/off toggle switches with status led:	2
Grip-to-Grip wheel length:	28,2 cm
Grip max diameter:	45 mm
Proprietary custom made tactile button assembly:	Yes
Improved button guards with better ergonomics and feeling:	Yes
Straight back charging connector:	Yes
Illuminated Buttons:	Yes
Backlit buttons:	Yes
Front rotary encoders:	4
Thumb rotary encoders:	2
Thumb rotary encoders integrated into the grips:	2
Launch control clutch system:	Yes
Color:	Black, Blue
Multi-directional joystick with integrated encoder:	2
Integrated Simucube wireless module:	X
Integrated charging electronics:	√
LiPo battery, up to 40 hours of use:	V 2000mAh
Connection and battery status LEDs:	V (green when charged, red while charging, yellow when out of power)
On/off pushbutton on the backside of the wheel:	√
Display:	Yes
4″ full-color LCD screen with completely customizable layouts and PC configuration utility:	Yes
Anti scratch strengthened display glass:	Yes
In-software clutch and shifters configuration:	Yes
Passive Y splitter USB extension cord:	X
Pure carbon fiber front plate:	Yes
Wheel hub compatible with all formula-style quick release hubs (3 bolts, 1-inch and 70mm PCD):	Yes
Weight:	1100 gr
VR friendly:	Yes
Plug & Play technology – No shifter calibration required:	Yes
USB+Bluetooth Dual mode:	Yes
Q-conn magnetic connection cable:	Yes
Customizable RGB LEDs buttons and dials:	Yes
Version:	Shifter & Clutch, Shifter & Clutch & Option
Platform:	PC (Windows)
Warranty:	2 Years
