The Asetek Racing Dual Mode Shifter brings H-pattern and sequential shifting into one cockpit control. Its appeal is straightforward: keep a traditional seven-speed gate for manual cars, then select sequential operation for cars that use forward and backward gear changes. This guide explains the mounting measurements, connection choices and control checks that matter before your first drive. It also separates hardware settings from simulator assignments, because changing the physical mode alone does not configure the game.
Who is this shifter for?
Choose this shifter if you regularly alternate between road cars, historic racing and sequential competition cars. The 7+R layout provides seven forward positions and reverse; the second mode provides repeated upshift and downshift inputs. Drivers who exclusively race paddle-shift cars may get more value from another upgrade first. For mixed-car enthusiasts, a dedicated lever adds a consistent physical reference beside the seat and avoids assigning every gearbox to steering-wheel paddles.
Check the mounting before you buy
The housing measures 133 × 132 × 290 mm and weighs 1.9 kg. Its mounting interface uses four M6 threaded T-nuts, an 80 mm width and a variable longitudinal spacing of 30–69 mm. Compare those dimensions with the actual slots in your cockpit plate. Include room for the hand and the complete lever movement, rather than checking the housing footprint alone. The included cockpit bracket supports installation planning, but the receiving structure still needs a suitable interface.
Position the lever around your seated reach
Sit in your normal driving position with the pedals and wheel already adjusted. Hold the lever without lifting your shoulder or leaning away from the backrest. Check the furthest gear positions and the path your elbow takes beside the seat. A high side bolster can interfere even when the lever is easy to reach in neutral. Leave clearance for a future handbrake and route the USB cable away from seat sliders. Both left-side and right-side layouts are supported.
Mounting sequence for a stable installation
Start by loosely assembling the bracket and shifter so every fastener enters cleanly. Align the unit, check access to the mode selector and then tighten progressively according to the official instructions. Use the fastener lengths specified for the mounting arrangement; a bolt that bottoms out can feel tight without clamping the bracket. With the wheelbase switched off, move through all gears and apply normal shifting force. If the plate twists, improve its support before increasing the intensity of your driving.
PC connection and RaceHub
On PC, connect the shifter directly by USB and use RaceHub for configuration and calibration. An Asetek wheelbase is not required for this standalone PC route. The package includes USB-A-to-USB-C and USB-C-to-USB-C cables. Choose the connection that matches your installation and avoid pulling the connector sideways. Check detection in the software before opening the simulator. If an input is missing, confirm the cable and device connection first, then review calibration and game assignments separately. RaceHub is officially supported on Windows 11; check the current software requirements before installation.
H-pattern and sequential profiles need different mappings
For H-pattern operation, map each forward gear and reverse individually. Check neutral as well: leaving a gear should stop that gear input. For sequential operation, assign the two directions to upshift and downshift. The integrated selector changes modes without tools, and the LED indicates the selected mode. Make mode changes while stationary, then test the inputs before leaving the pits. Save separate profiles if the simulator supports them; this reduces accidental changes when switching between a manual road car and a sequential rally car.
Do you need a clutch pedal?
That depends on the simulated car and the assistance settings. A physical H-pattern lever does not automatically enable manual clutch operation. Review automatic-clutch, automatic-blip and gearbox options in the game. Begin with a familiar car, test gear selection at low speed and only then practise faster changes. A missed shift may come from the simulation's clutch logic rather than a faulty sensor. Contactless Hall-effect detection records the lever position; it does not decide how the virtual gearbox accepts a shift.
PC support and Xbox readiness are different requirements
Asetek describes Xbox use through a compatible Asetek Xbox wheelbase and steering wheel. A USB plug alone does not make the shifter an independent Xbox accessory, and ownership of an arbitrary Asetek base does not establish compatibility. Confirm the complete base, wheel and connection chain for the intended console. For a PC rig using another wheelbase brand, the direct USB route is the relevant starting point. The cockpit and simulator must still support the additional controller.
Build a useful mixed-car setup

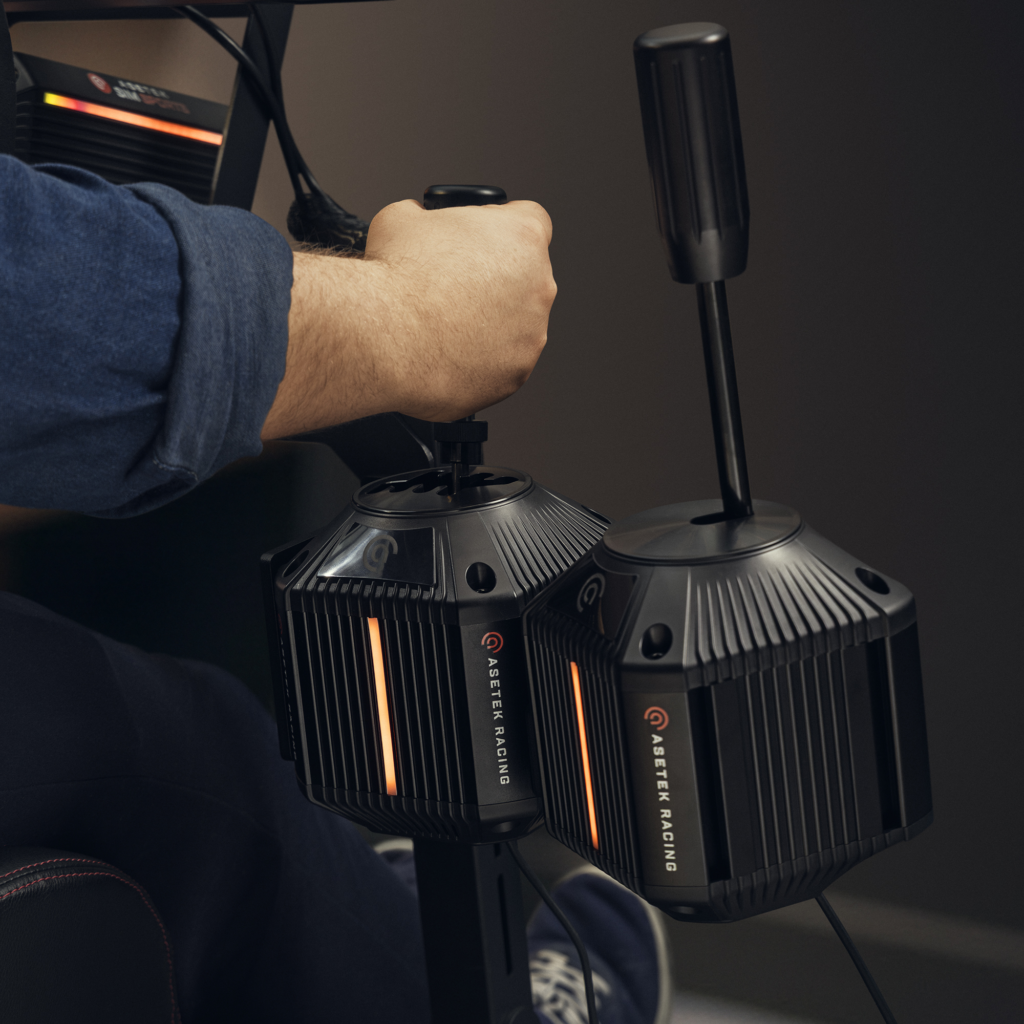

For manual road cars, combine the shifter with a three-pedal layout and a wheel shape that permits comfortable hand-over-hand steering. For sequential rally driving, prioritise a rigid side mount and enough separation between the shifter and handbrake. The Asetek Load Cell Handbrake is a separate control to assess for that role; it is not included with the shifter. For broader comparison, read our BDH shifter selection guide. These are alternative purchasing paths, not promises that every cockpit mounting arrangement is interchangeable.
Frequently asked questions
Can I use it without an Asetek wheelbase?
Yes, on PC through direct USB. Xbox requires the compatible Asetek hardware chain described by the manufacturer.
Is a table clamp included?
The listed package includes the cockpit bracket and two USB cables. Check the exact clamp accessory requirements before planning a desk installation.
Does switching modes update my game profile?
No. The hardware selector and simulator bindings are separate. Test the appropriate gear inputs after changing modes.
Where should I check installation details?
Use the official product specifications and current shifter manual. This guide concerns the standard Dual Mode Shifter, rather than the numbered Signature Edition.
