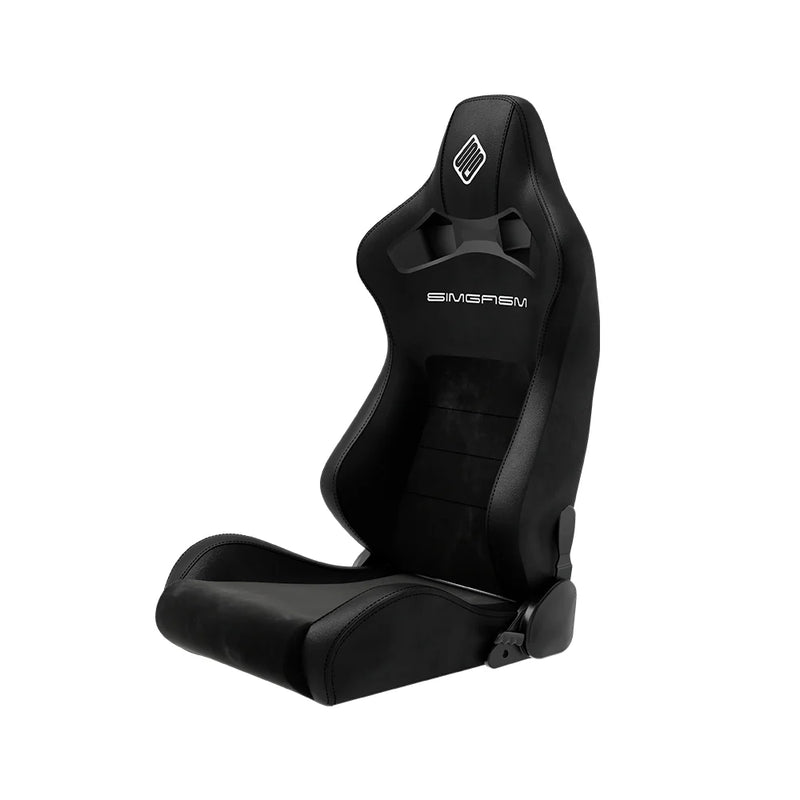

A reclining sim racing seat can make a shared cockpit easier to live with, but the backrest angle is only one part of fit. The important checks are the seat's lower mounting points, the rails or slider beneath it, pedal reach, and whether your wheel stays comfortable when the seat moves. This guide focuses on the SIMGASM Core Recline Seat in black and the practical decisions that turn it into a usable rig.
What the Core Recline Seat is for
SIMGASM positions this as a flexible seat for drivers who prefer an adjustable backrest over a fixed bucket shell. The maker lists a leather-and-suede finish and a backrest that can move toward a near-upright position. That is useful when one cockpit serves several drivers or when you switch between a focused GT driving posture and a more relaxed session. It does not automatically make every recline angle suitable for braking: your torso still needs support when you press the pedal hard.
The manufacturer's box list names a seat base and a backrest. Plan for assembly and check the listing for current included fasteners. A seat slider, cockpit, side brackets, and office-chair base should be treated as separate items unless your selected bundle explicitly includes them. The seat's office-chair mounting pattern is 193 × 193 mm according to SIMGASM; that measurement is for a compatible office mechanism, not a promise that every sim-rig slider shares the same holes. SIMGASM's product page is the primary specification reference.
Check cockpit and slider fit before ordering
Start under the seat
Measure the fore-aft and side-to-side distance between the mounting holes on the underside of your intended seat or existing slider. Compare both dimensions with the rails and brackets on your cockpit. Also check the bolt size, the direction in which the hardware is inserted, and whether there is room to reach the bolt heads after the seat is on the rig. A drawing or a direct confirmation from the manufacturer is better than assuming that “universal” means bolt-on.
SIMGASM lists its Hobby, Club, Sport and Pro cockpit families as compatible with the Core Recline Seat. For a current build, the SIMGASM Club aluminium cockpit is a useful reference, but verify its chosen seat-mount configuration and current availability before adding it to an order. The SIMGASM dual-locking slider set is a separate product; check its stock and the intended bolt pattern rather than assuming that a sliding rail ships with the seat. With a different-brand cockpit, confirm the actual seat-rail dimensions and available clearance on that rig.
Install the seat in a useful order
- Set a starting point. Put the pedal deck and wheelbase in their approximate final positions. If several people use the rig, set the slider near the middle of its travel before fixing the seat.
- Assemble the seat. Join the base and backrest using the supplied instructions. Support both pieces so the fasteners can start by hand without cross-threading. Tighten them only after the joints are aligned.
- Test the rails dry. Place the slider or seat brackets against the underside of the seat. Check that every mounting hole lines up and that the recline lever remains accessible. Do this before locking anything to the cockpit.
- Mount to the rig. Fix the lower rails or brackets squarely to the cockpit. Use the hardware specified for those components and follow their torque guidance. Move the slider over its full range to catch any interference with the frame or pedal supports.
- Set the driving position. Sit with your back against the seat, press the brake as you would on track, and adjust seat distance until your leg retains a comfortable bend. Set wheel height and reach next, then fine-tune backrest angle.
Dial in posture after the first drive
Begin with a relatively upright backrest. A steeply reclined position can make the wheel feel farther away and may encourage you to pull on the rim during heavy braking. If the pedals are too distant, move the seat rather than stretching your toes. If your knees collide with the wheelbase mount, adjust the pedal deck and steering position as a system. In a shared rig, mark two or three repeatable slider positions and record the corresponding backrest angle.
Then run a short session that includes sustained braking and frequent steering input. Pay attention to whether your pelvis shifts, whether the shoulder area stays supported, and whether the recline mechanism feels positively engaged. Recheck the fasteners and slider action after the first sessions, following the relevant component manuals. Comfort is personal; the useful test is repeatable control input without fighting the seat.
When this seat makes sense
Choose the Core Recline Seat if you want adjustable backrest geometry, a seat shared by multiple drivers, or a cockpit that may later be repurposed. SIMGASM also describes an optional office-chair-base conversion through its 193 × 193 mm underside pattern. Verify the specific base and mechanism before buying; the office kit is separate and should not be inferred from the seat-only listing.
A fixed-back bucket seat may be preferable when your top priority is a firmly set driving position under very high brake forces. That comparison depends on the exact bucket, its brackets and your body fit. If you already own a cockpit, the sensible first purchase check is mechanical fit; if you are starting from scratch, select the cockpit and slider together with the seat.
Frequently asked questions
Does the Core Recline Seat include a slider?
The manufacturer's listed box contents are the seat base and backrest. Treat a slider as a separate purchase unless the retailer's chosen variant specifically says otherwise.
Will it fit a non-SIMGASM cockpit?
Possibly, but verify the mounting-hole spacing, bolt hardware, bracket orientation and slider clearance against your actual cockpit. Brand-agnostic descriptions are not a substitute for those measurements.
Can it become an office chair?
SIMGASM specifies an additional 193 × 193 mm underside mounting pattern for compatible office-chair mechanisms. The office base is separate; check the intended kit and its current availability.
What should I adjust first?
Set pedal reach with your back supported, then wheel height and reach, and finally the recline angle. After a test session, revisit all three because each affects the others.
Recommended next step: Check the Core Recline Seat product page, then confirm your cockpit and slider dimensions before ordering. Source for product-specific specifications and official photography: SIMGASM.
